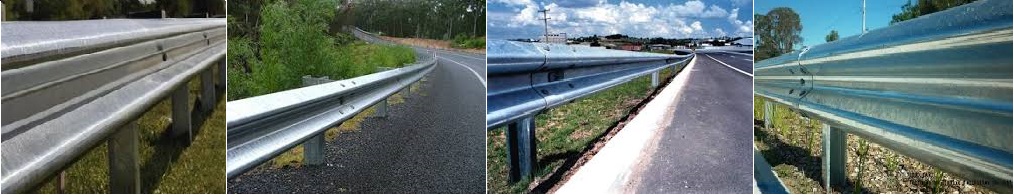

Metal Beam Crash Barriers - W Beam and Threi Beam

“Metal Beam Crash barrier”

We are perhaps upcoming largest manufacturing Unit of India for manufacturing “METAL BEAM CRASH BARRIERS (GUARD RAILS)”. We have set up a state-of-art manufacturing facility supported by well-equipped testing facilities for “Metal Beam Crash Barriers” . In Jindal India Limited we are planning to development all range of Crash Barrier, spares, Guard rails to support all your needs. We are having the set up and facilities for manufacturing regular & customized ‘W Beam’ and ‘Thrie Beam’ type Crash Barriers , spacer & post along with best quality of hot-dip galvanizing arrangement. Our vision is to manufacture & supply the Crash with stringent quality controls and to manufacture as per the specifications laid down by Ministry of Road Transport & Highways (MORTH) Ministry of Surface Transport (MOST), and also International Standards, viz., AASHTO 180, EN-1317-1&2. Currently we are equipped with plant & machinery to produce 60,000 MT of Crash Barrier Annually.

Product Specification: W-Beam/Threi Beam:

W –Beam /Threi Beam Metal Crash Barrier single side/Double Side Guard rail comprising of 3 mm (and also Customized) cold rolled section having minimum yield strength 2400 kg /sqcm having width of 312 /510 mm and depth of corrugation as 83 mm with hot dip galvanized of zinc coating@ 550 g/sqm having total length 4.318 M (effective length 4M) and also customized, generally as per MORTH specification.

Post & Spacer Channel:

The Post/Spacer channel made of cold rolled section having minimum yield strength 2400 kg /sqcm. The post/Spacer will be hot dip galvanized of zinc coating@ 550g/sqm having size of 150mm x75mm x 5mm thick(and customized) x Length as per the drawing approved by project consultant .

Hex & round/button Head bolt with Nuts & washer: As per the requirement. Certification:

Base Metal (HR Coil) as per IS: 5986/10748/2062 of Grade Fe 410,510 etc of TATA/SAIL/JINDAL Make.

  • Min. yield Strength – 235-255 mpa
  • Min. Tensile strength - 360-410 mpa

  • Galvanizing as per IS: 1364

  • Hot dip galvanizing, minimum deposition.
  • 550gm/M2 single spot.

Product Range:

1.Metal Crash Barrier: All types of W-Beam, Threi Beam, Post, Spacer, End Terminal, End shoes, Fish Tail (Available in all Indian & International Standard.

2.Pedestrian Guard Rail: Either from Tubular pipes/ Square Hollow-sections.

Metal Beam Crash Barriers - W Beam and Threi Beam
Production Capacity 60000 MT per annum
Manufacturing Process Cold rolling from HR Coil Slits with fully automated Mills
Components W Beam, Thrie Beam, Post & Spacers
W & Thrie Beam As Per MORT&H Length may be customized as per customer requirement
Post & Spacer 150mm x 75mm, Length may be customized as per customer requirement
Length of W & Thrie Beam 4 Mtrs., May be Customised as per requirement
Protective Coating Hot Dip Galvanizing

SWAGED TUBULAR POLES (STPs)

With our rich history in producing ERW Pipes for the last 70 years, we have recently ventured into production and supply of Swaged Tubular Poles (STPs) - A true value addition to our ERW Pipes. And, within 3 months of commercial production, we have now been supplying over 30,000 Nos. of STPs to the prestigious Odisha Greenfield Project, apart from executing other orders for few other clients.

We design and manufacture Swaged Type Steel Tubular Poles from our own "JINDAL" Make ERW Pipes.

Our Integrated Product Chain begins with the procurement of Hot Rolled Coils, conforming to IS : 10748, IS : 5986 and other equivalent International Standards, as per Client's requirements. These HR Coils are then used for producing ERW Pipes conforming to IS : 1161 and then for Swaged Tubular Poles as per IS : 2713.

Facilities:

  • Our manufacturing plant is equipped with 4 Swaging Machines and requisite nos. of Drilling, Welding and Straightening Machines.
  • We do have full fledged Mechanical and Chemical Laboratory including Spectrometer enabling us to do all the tests, in-house.
  • We have 13 M Zinc Galvanizing Tank, making it one of the largest in Eastern India.

Product Range:

  • We produce STPs up to the length of 16 Meters and thickness up to 6 MM, covering the entire range from 410 SP 1 to 410 SP 80 and 540 SP 1 to 540 SP 80.
  • We also produce Single and Double Arm Brackets as per the Client's designs.

Application :

  • Street Lighting
  • Traffic Signal Lighting
  • Signage
  • Power Distribution
  • Solar Lighting
  • CCTV Surveillance
