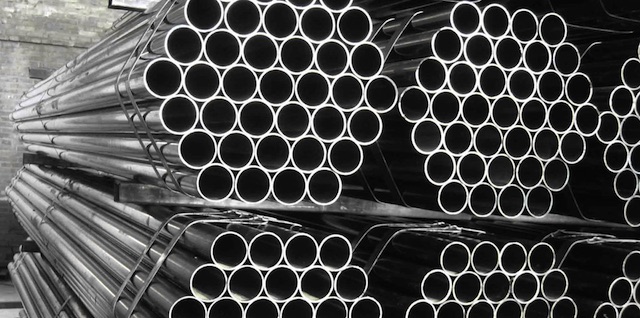

ERW Pipes

Our range of ERW Steel Tubes serves various applications with precision and reliability, meeting rigorous standards for mechanical engineering, general engineering, and water well purposes. Compliant with IS 3601:2006, our black and galvanized tubes span sizes from 21.3mm OD up to 406.4mm O.D, with thicknesses up to 12.7mm.

For water well applications, our ERW Steel Tubes conform to IS 4270:2001, covering sizes from 100mm NB to 450mm NB and thicknesses up to 10.0mm in grade Fe 410, ensuring robust performance and durability.

We also address structural needs with our ERW Hollow Steel Sections in accordance with IS 4923:1997, offering a comprehensive range of sizes, grades (YST 210, 240 & 310), and thicknesses up to 10.0mm, ensuring structural integrity and stability.

Additionally, we provide ERW Steel Tubes tailored for idlers and belt conveyors, meeting IS 9295:1983 standards. These tubes are available in sizes up to 168.3mm O.D and 5.4mm thickness in grades YST 210 & 240, and in plain ends grade WT160, WT210, WT240, and WT310.

ERW/Black and Galvanized & Steel Tubes
Production Capacity 160000 MT per annum
Manfacturing Process ERW/HFW Welding Process
Outside Diameter 1/2" [15mm] to 10" [250mm]
Wall Thickness 2 mm to 9.5 mm
Pipe Length 4 Meters to 7 Meters
Specifications IS,BS,ISO/ASTM/UL
Pipe Ends PLain,Beveled or Socketed
Protective Coating Bare,Galvanized or Rust Preventive Coating or Galvanized when agreed.
End Protection Protected with Plastic & Sockets
